I didn’t do snything apart from pass tools but I’m having this done
View attachment 64995View attachment 64996
The tidier finished version .....

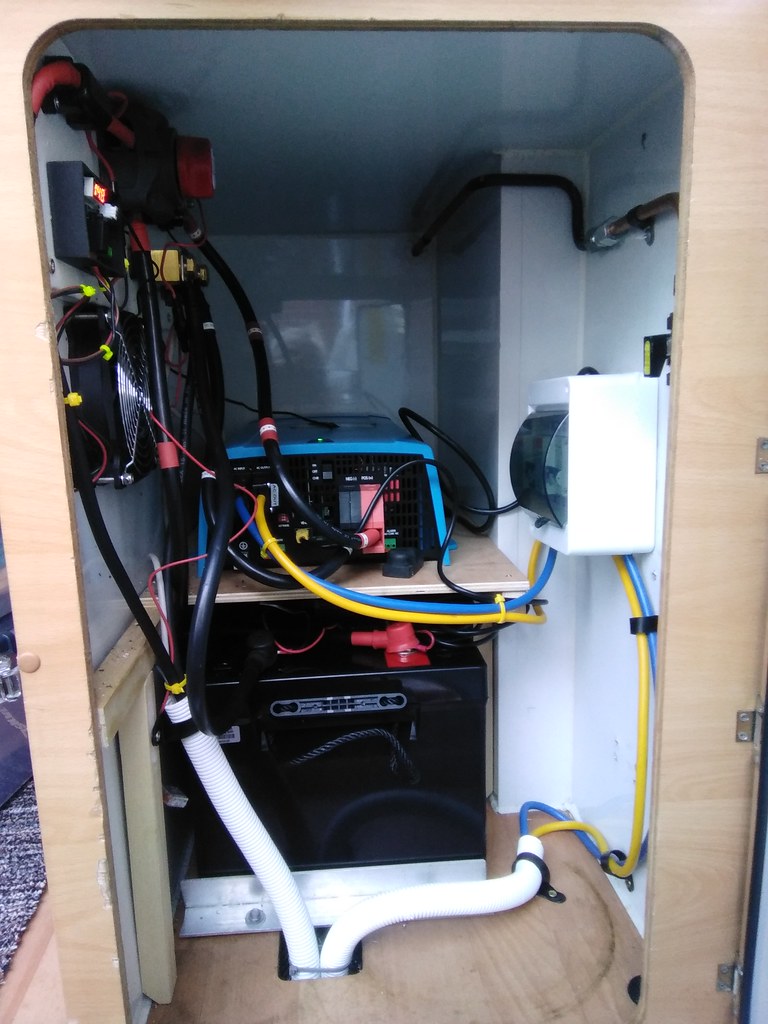

Electrics Locker -RHS by
David, on Flickr
300AH Lithium at the bottom; 12/1600
Multiplus above
On the Right wall 240V Consumer unit with RCBO into
Multiplus, RCBO out of
Multiplus, plus an MCB for a flying IEC lead for Charger use.

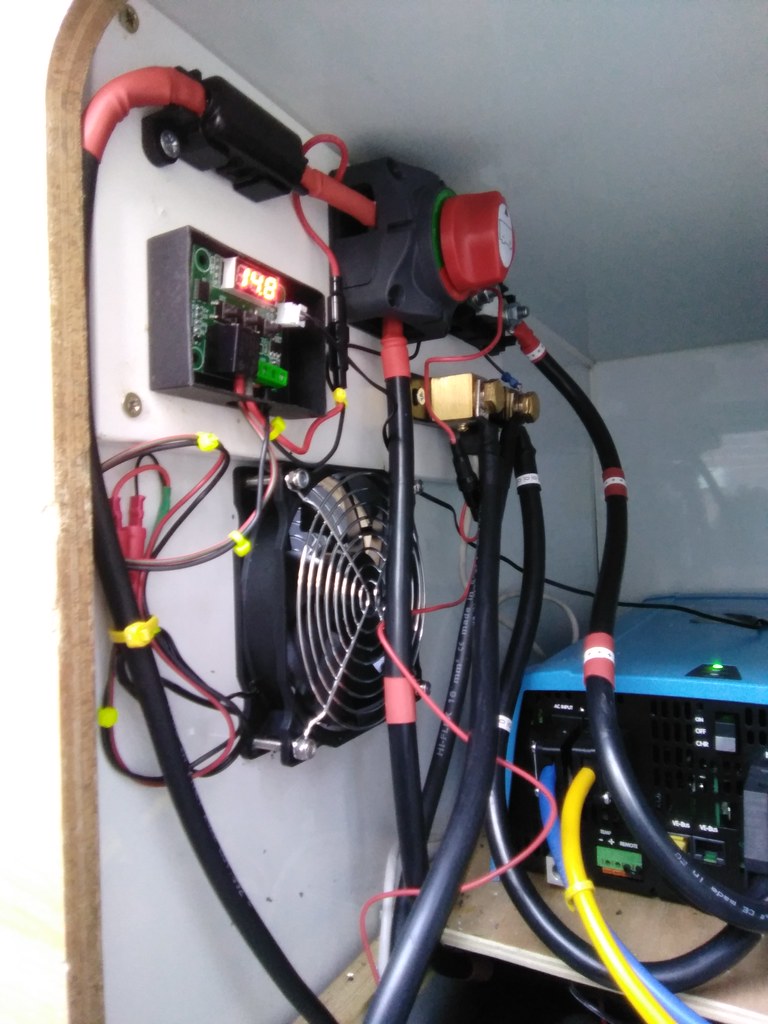

On the Left wall, Isolation Switch for the
Battery, 80A
Fuse for the Hab 12V Supply, 175A
Fuse for the MP 12V Supply,
Shunt for the
BMV-712, and a Temperature Controller that monitors the Muliplus case temp and activates a fan to draw the warm air out the locker when over the set temp (cool air is brought in from underneath via the drop-out vent.
Electrics - Left Wall by
David, on Flickr

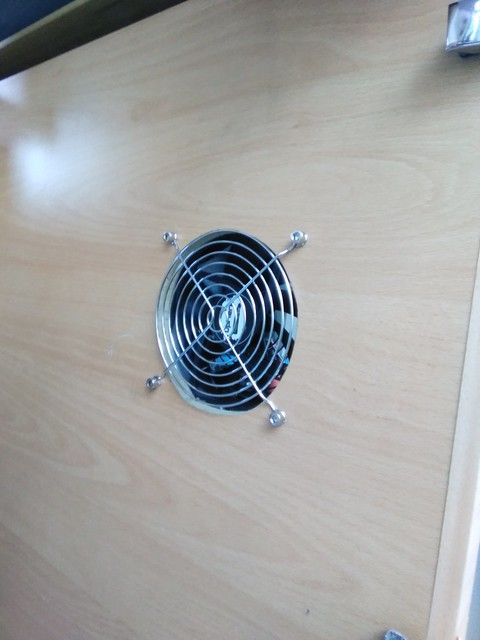

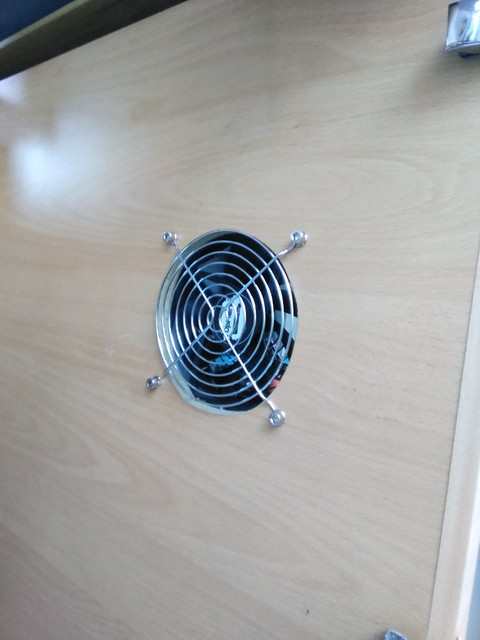

Fan has a little grill on both sides to protect fingers and wires from the vanes
Fan Grill by
David, on Flickr

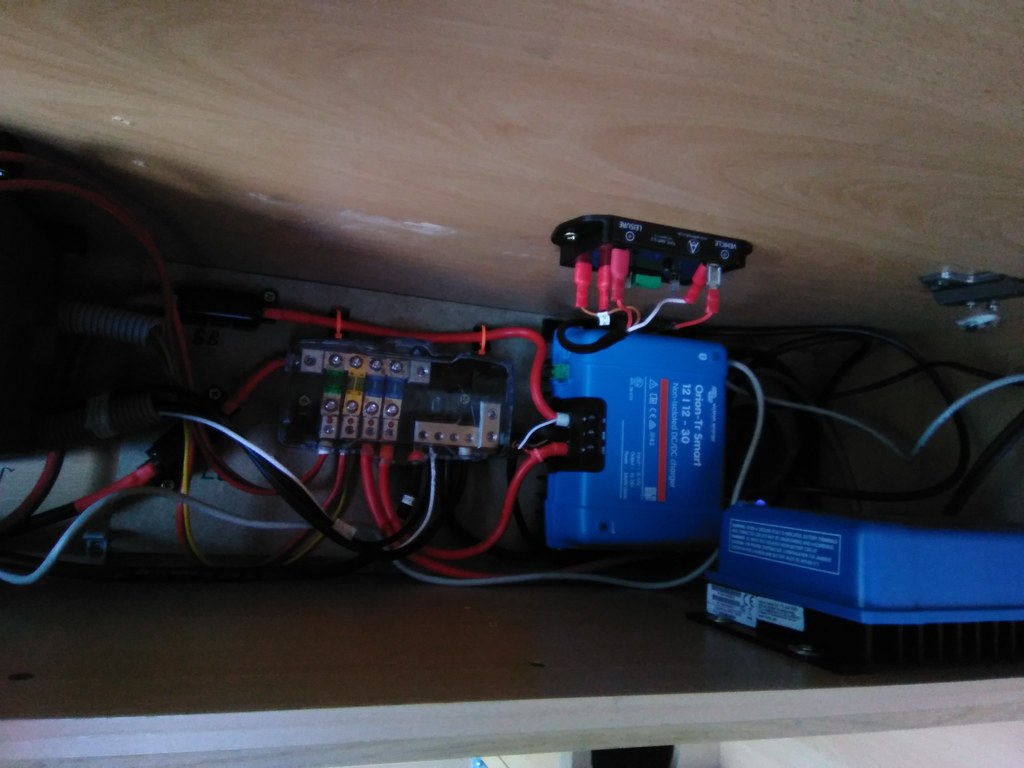

On the Left Side is the Charging and Distribution side
EBL208 (not in photo) is fitted as standard, but now has no main Starter
Battery Input as the
Victron B2B will take over the Split-Charge function.
The Mutiplus is doing the Mains Charging and an AMT12-2 is providing Starter
Battery maintenance so the Mains input to the EBL has been removed so its only function is 12V Distribution.
A
Victron SmartSolar 100/30 is looking at the pair of 175W panels mounted on the Roof.
And a Midi
Fuse Block is bringing in the 12V from the RHS Locker and connecting it (via
Fuse-protected cables) to the EBL208, 12V Existing Accessories,
Solar Controller and B2B.
I
Electrics Locker - LHS by
David, on Flickr

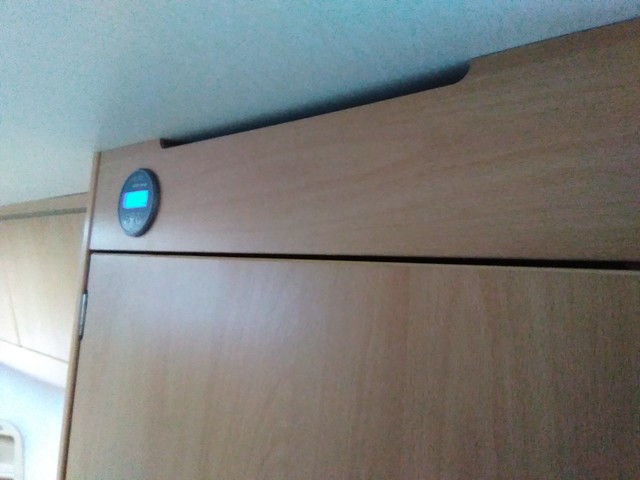

And the
BMV-712 display located in a cupboard niche to allow the info to be read directly as well as from the
Victron app. The
BMV can also control the AMT12-2 via its relay. Current set to manual override, but could be set to have the AMT activate automatically if say the Starter
Battery was below 12V, for example. All about the flexibility
I
BMV-712 by
David, on Flickr
